Heavy Duty Motorhead Assembly Coiled Tubing Tools Strings AMMT Connection

Name: Heavy Duty Motorhead Assembly Coiled Tubing Tools Strings AMMT Connection
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

Buy cheap Heavy Duty Motorhead Assembly Coiled Tubing Tools Strings AMMT Connection product

Brand Name : ZZ TOP OIL TOOLS

Model Number : Heavy Duty Motorhead Assembly

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : Heavy Duty Motorhead Assembly

Application : Downhole Coiled tubing operation

Usage : Coiled Tubing Tool String

Material : Alloy Steel

Size : 1 3/4" - 3 1/8"

Connection : AMMT, PAC

Working Condition : Oil & Gas & H2S service

Delivery : 20-30 days

Contact Now

Heavy Duty Motorhead Assembly For Coiled Tubing Tool Strings

The Motorhead Assembly consists of Double Flapper Check Valve, Heavy Duty Hydraulic Disconnect and the Dual Activated Circulation Valve. The The compact design of Motorhead Assembly gives an overall length which is shorter than the total length of conventional individual components. It is ideal option for cutting, milling and fishing.

Only by dropping a ball and shearing the pins can the collet sleeve shift, allowing the collet and top sub to part. The piston sleeve is pressure balanced, so internal pressure does not affect the hydraulic configuration and shear values. High torque capabilities are achieved through positive torque drive teeth between the top sub and the main body of the tool. The heavy duty hydraulic disconnect is therefore ideally suited for high torque, heavy duty coiled tubing drilling operations where maximum performance and durability are essential.

Specification of Heavy Duty Motorhead Assembly

OD	ID	Ball Size	Fish Neck	Make-Up Length	Working Condtion	Connection
1-3/4"	0.393"	5/8"	2"	28.9"	STD	1"AM MT
2-1/8"	0.551"	3/4"	2"	31.5"	STD	1-1/2"AM MT
2-7/8"	0.787"	1"	3”	40.4"	STD	2-3/8"PAC
3-1/8"	0.875"	1-1/8"	3"	42.4"	STD	2-3/8"PAC
1-3/4"	0.393"	5/8"	2”	28.9"	H,S	1AMMT
2-1/8"	0.551"	3/4"	2"	31.5"	H.S	1-1/2"AM MT
2-7/8"	0.787"	1"	3"	40.4"	H,S	2-3/8"PAC
3-1/8"	0.875"	1-1/8"	3"	42.4”	H,S	2-3/8"PAC

Heavy Duty Motorhead Assembly Coiled Tubing Tools Strings AMMT Connection

Product Tags:

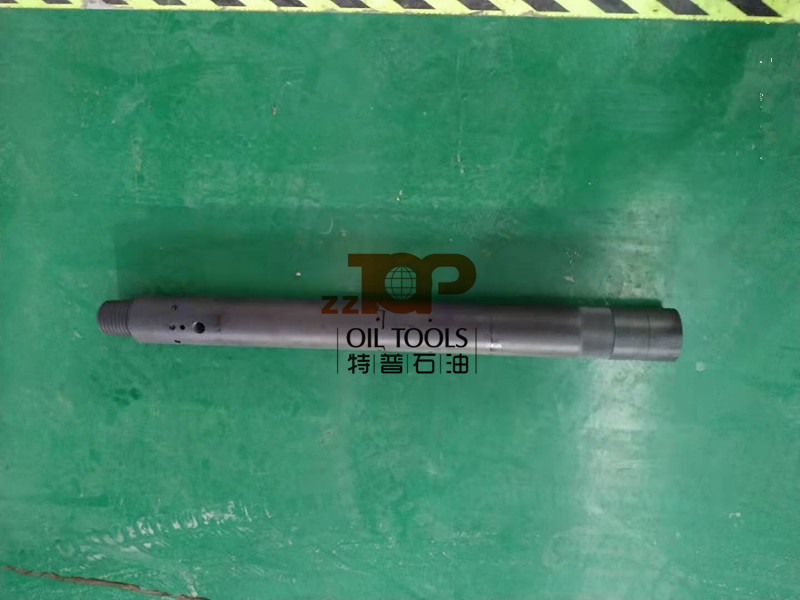

Heavy Duty Motorhead Assembly Coiled Tubing Tools Strings AMMT Connection Images
