Downhole Testing Retrievable Packer Mechanical Well 15K Setting RTTS Packer

  • 1
  • 2

Brand Name : ZZ TOP OIL TOOLS

Model Number : 5" Retrievable Packer

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : Downhole Testing Retrievable Packer

Material : Alloy Steel / Inconnel

Size : 5 inch

Working Pressure : 15000psi

Application : Oil Well Testing, Treatment and Squeeze Operation

Connection : IF, EUE , CAS

Working Condition : Oil & Gas & H2S service

Working Temperature : Up to 425oF

Contact Now

Downhole Testing Packer Mechanical Setting Retrievable Packer 15 K RTTS Packer



The RTTS packer is the full bore retrievable packer used in well testing, treating, squeezing and cementing operation. In order to meet different well condition, ZZ TOP modified the RTTS packer, the working pressure of RTTS packer can be reached to 15000 psi.



The 15K Retrievable Packer is designed with mechanical setting and operated by mechanical lifting and rotating to setting and unsetting, the full opening permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun, it will help make the tool usable for multiple operations with one trip in the hole.


The RTTS packer can segregate bidirectional pressure, double grips with hydraulic hold-down and mechanical slips to prevent the packer pumped out from hole due to high pressure from formation.



Technical parameter



Max. Working Pressure:  15000PSI Max.
Working Temperature:  400F
Packer Element:  NBR/ HNBR/VITON
Thread Connection:  IF, EUE, PH6,VAM Top H2S As per NACE MR0175(Above 175F)



Specifcation of Full Bore Retrievable Packer / RTTS Packer



Size(in) Casing Range(lb/ft) Size(in) Casing Range(lb/ft)



4 1/2

 9.5 8 5/8 24-49
15.1-18.1



9 5/8

 40-71.8
11.6-13.5 29.3-53.5



5

 23



10 3/4

 32.75-55.5
15-18 60.7-81
11.5-13



11 3/4

 38-54



5 1/2

 23-26 60-71
20-23



13 3/8

 48-72
13-20 72-98
6 15-23



16

 75-109
6 5/8 24-32 109-146



7

 17-38 18 5/8 78-118
49.5



20

 94-133
7 5/8 20-39 169-204

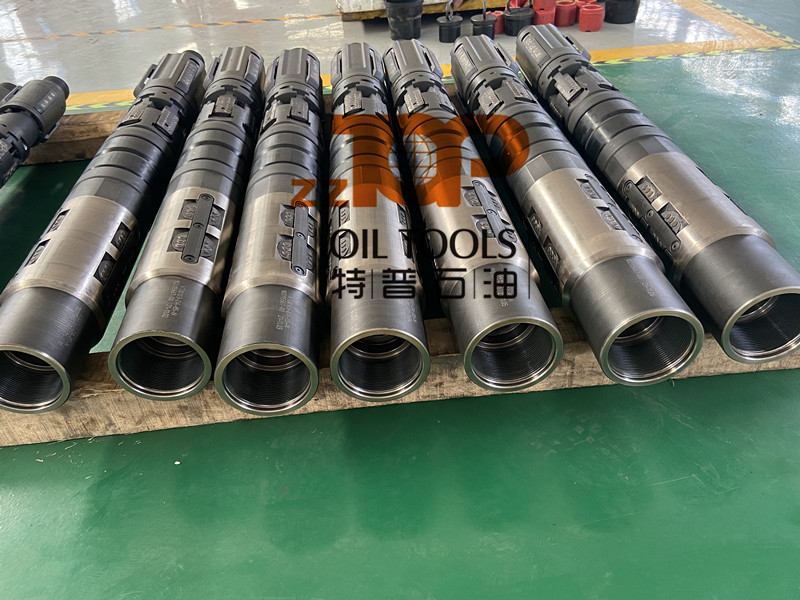

Downhole Testing Retrievable Packer Mechanical Well 15K Setting RTTS Packer Downhole Testing Retrievable Packer Mechanical Well 15K Setting RTTS Packer
